W(Z) series marine self-priming vortex pump manufacturer from China Deyuan Marine Fitting Co.,Ltd

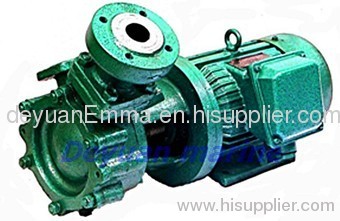

W(Z) series marine self-priming vortex pump

Payment Terms:	T/T,L/C
Place of Origin:	Chongqing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Air

Delivery Date: 7days

Packing: wooden case

1. Small flow, high head
2. Self-priming vortex impeller
3. GB/T5656-2008, DIN24256

marine self-priming vortex pump

China Deyuan Marine Fitting Co.,ltd are leading supplier of marine pumps,such as marine diesel emergency fire pump,vortex marine water pump,marine centrifugal water pump etc.Pls contact us for more details.

W(Z) series marine self-priming swirl pumps are applicable to pumping elear water and light erroding medium.

The pump rotates clockwise viewed from motor.

Type	50HZ,3phase,380V main techinical parameter					Motor power (kw)	Remarks
Type	Capacity (m3/h)	Head (m)	Speed (r/min)	NPSHR (m)	Shaft power (kw)	Motor power (kw)	Remarks
1W-3Z	3	10	1450	6	0.42	0.75	No exhaust
1WZ-3Z	3	10	1450	6	0.42	0.75	Self-priming
1W-0.9Z	1.8	25.5	1450	3.5	0.625	1.5	No exhaust
1WZ-0.9Z	1.8	25.5	1450	3.5	0.625	1.5	Self-priming
25WZ-105Z	1	105	2900	4	1.93	3	Self-priming
